Like the LM2, the LM5 Pulverising Mill is an industry-standard mill that has been in operation over 30 years and is used by many major commercial laboratories.

The mill offers great benefit to high-volume mineral laboratories that regularly prepare large samples in the unique Essa single-puck style of bowl. It is often used in series with two or three machines and one operator when larger or harder samples require longer grind times to achieve a finer product.

Top performer

This LM5 is the go-to machine for pulverising larger sample size ores, minerals, metallurgical samples, ceramics, soils, aggregates, chemicals and similar particulate.

A powerful 4 kW electric motor drives the LM5, with it able to take sample volumes up to 5000 cc. Optimal performance is achieved with sample weights of between 2.5 kg and 3.5 kg. It can pulverise most rock types to 90%, passing 75 microns in only six minutes.

Suitable for gold

Different minerals behave differently during pulverisation – brittle minerals will break down whereas some, such as native gold, will just change shape if poorly prepared. The LM5 is a top performer for the gold mining industry, especially where ‘nuggety’ samples are more common.

Safety

Unique safety and operational features make the LM5 safe and easy for your workers. A lid safety switch and emergency stop button mean improved safety, and a vacuum gun helps with efficient and safe removal of pulp residue, reducing contamination. The MILLMATE™ air lift crane is supplied as standard for safe operation.

The Essa LM201 Pulverising Mill is a top-of-the-range vibratory mill suited to high-volume mineral laboratories regularly preparing samples in the unique Essa single-puck style of bowl.

Flexibility

The user-friendly LM201 can be fitted with 800, 1000 or 2000 cc single disc-type grinding bowls, and the standard size ring-and-roller grinding bowls. It typically grinds to 95% minus 75 micron in approximately three minutes.

It is suited to any laboratory remote from the specialised repair services required for integral vibratory motor-driven mills.

Strength

This is the workhorse you need, with the strength and power of a 2.2 kW driven shaft to rapidly grind up to 1.8 kg of ore mineral for analysis. The powder-coated steel frame and panels strengthen the frame and prevent corrosion.

The insulated steel cabinet suppresses noise, and the operation of the MILLMATE™ (supplied as standard) – from either side of the machine – means less manual handling and continuous heavy lifting for your operators.

Easy to maintain

Designed to meet CE compliance, the mill has a steel casing and a number of features for improved maintenance access, costing you less downtime. The motor has been moved to the left-hand side away from the electrical box, and pneumatic and electric controls are separated for extra safety. Maintenance time and costs are also reduced thanks to sealed bearings which remove the requirement for greasing.

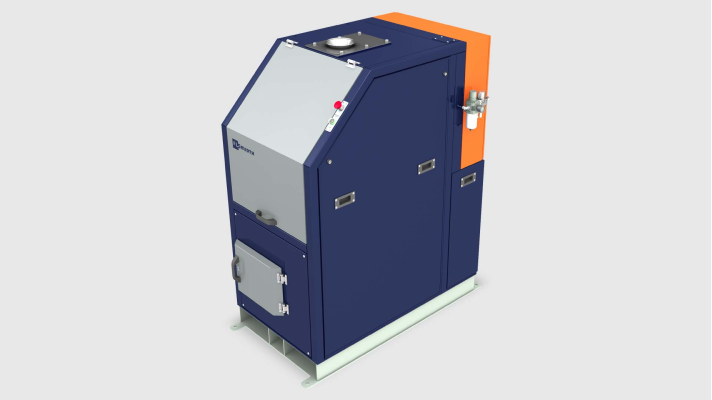

The Essa ABM200R Autobatch Mill is an automated adaptation of the high performing Essa LM2 Pulverising Mill and large capacity 2000 cc bowl assembly.

Automated cleaning

The ABM’s permanently attached, self-discharging bowl is air blasted and vacuum cleaned between batches, with the residue discharged into the resident dust collection system. Bowl discharge and cleaning is controlled by an on-board programmable logic controller (PLC) which also controls the milling cycle.

Minimal operator involvement

As well as the automated cleaning function enabling you to minimise operator involvement, the operation process requires them to simply tip the feed sample into a feed hopper, press a ‘start’ button and remove a container that receives the milled sample.

Adaptability

There are three l configurations available depending on your specific sample types. Parameters such as grind and discharge time, air cleaning cycles and optional sand auto rinse frequency are all programmable and password protected.

The Autobatch Mill has an inbuilt monitoring and diagnostic system.

The Essa MILLMATE is a pneumatically actuated lifting aid for reducing the manual effort required when moving larger ring mill bowls between the Essa Pulveriser Mills and the workbench.

Easy operation

The special purpose radial slewing MILLMATE hoist is mounted on a vertical mast that fits conveniently between the mill and workbench. The cradle is manually manoeuvred by the operator to pick up and set down the bowl, meaning less fatigue for your operator.

Two thumb-operated push buttons in-built into the cradle control the hoisting motion. The hoist supports the whole bowl assembly in a ‘weightless’ condition during the transfer and requires very little operator effort.

Flexibility

The MILLMATE can be retrofitted to an existing machine or fitted with the installation of a new mill. Adaptors are available for smaller bowls.

Increased productivity

The sampling process is sped up thanks to the quick and simple operation of the MILLMATE which reduces manual handling.
